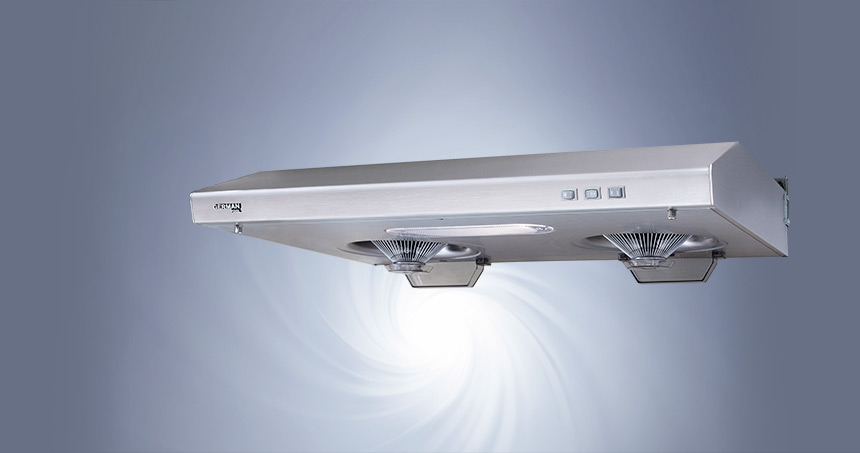

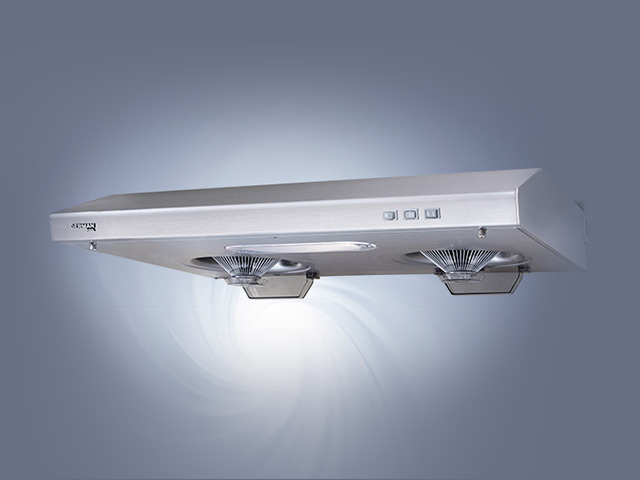

Extra-Slim & Aesthetically Appealling

The new Wall-Mount Series Range Hood comes with a super-slim, 10cm-thick body and 1,500 R.P.M. dual motors, which automatically accelerates to keep your kitchen clean whenever it encounters external air pressure. The four detachable oil collectors facilitate easy cleaning. With the Quiet Mode, energy is saved and noise is kept to a minimum.

10cm Ultra-Slim Design

Compared to other Asian type range hoods, the 10cm-thick Wall-Mount Series is a lot slimmer.

1,500 R.P.M Dual Motors

The powerful dual motors are able to accelerate to up to 1,500 R.P.M. effectively keeping your kitchen clean.

Low-Speed Quiet Mode

The Low-Speed Quiet mode is energy-saving and effective in minimizing noise level. Perfect for slow-stewing.

Brand New Features

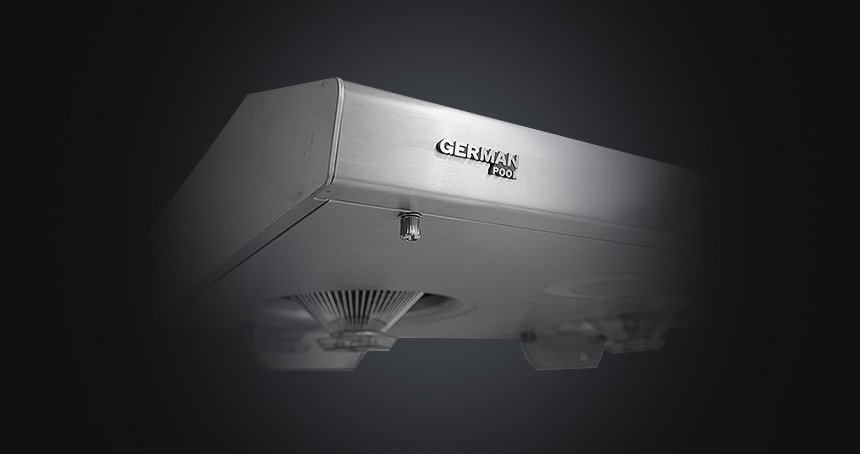

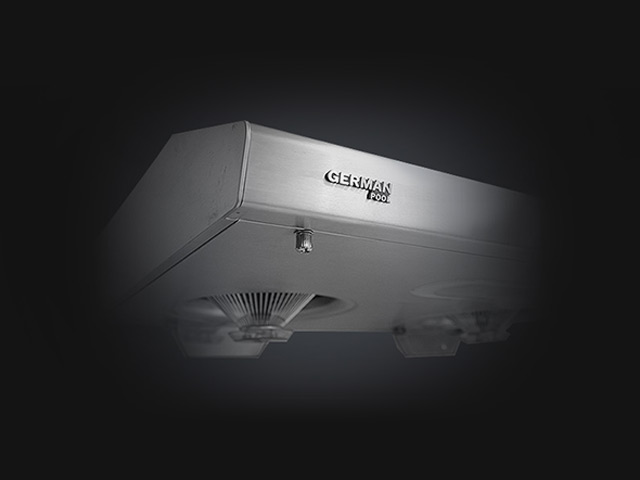

Reliable Safety Protection

The range hood automatically switches off when the safety screw is not secured.

High-Speed & Low Speed Quiet Mode

The 'Low-Speed Quiet Mode' is suitable for stewing. The powerful 'High-Speed Mode' is perfect for stir-frying.

Chic Stainless Steel Exterior

The stainless steel streamline body makes the range hood strong and aesthetically appealing.

Oil Collectors and Detachable Fan Covers

The four independent oil collectors prevent oil from dripping. The detachable fan covers make the range hood easy to clean.

3-Year Warranty On Motor

The upto 1,500RPM dual motors produce powerful extraction force that keeps your kitchen clean and fumeless. The motors come with a 3-year warranty.

Installation Diagram

Installation

We provide professional installation service. For more details, please click here:

Installation Fee

Specifications

Information

Functions & Features

WiFi Connection

Others

Remarks

More Details

FAQ

What is the recommended height for Range Hood installation?
The recommended height for Range Hood positioning is 700±50mm from the furnace surface.
How to reduce oil leakage of my Range Hood?
Check if the oil collection cup is full. After cooking is finished, keep the range hood running for about 10 minutes in order to prevent oil from accumulating inside.
The light is on but the fan/motor is not running. Why?
Remove any obstruction from the fan wheel may just solve the problem. Or if there is a burnt fuse, damaged motor or other broken part, contact a licensed technician for a repair or replacement.
There is vibration in the Range Hood. What is going on?
Inproper installation of the hood body, or unstable fan wheel and motor position all may contribute to vibration. Re-install or adjust the position of fan wheel and motor may solve it. When fan wheel is damaged and become imbalanced, contact a licensed te
Why do I find no oil in the oil collection cups but on the edges of the Range Hood panel?
The Range Hood might not be properly installed. The front of the unit must be slightly tilted up in order to let the oil flow down to the collection cups, which are located at the back of the unit. Please contact a licensed technician to re-install the ho
There is air return of the range hood. Why?
Air blocked by air damper at exhaust outlet causes air return.
The performance of my Range Hood does not seem to be very satisfactory. Why and how can I improve it
Your Range Hood may have been installed at a position that is too high or distant from the source of fumes. Contact a licensed technician to re-position it.
The Range Hood or its light does not turn on after I switch on the power, what should I do?
First, make sure whether the power is properly connected. If so, check and see if the light bulb needs a replacement. If the power cable is torn or not appropriately connected, contact a licensed technician to repair or replace it.
Why does my range hood operate at one speed and not at another?
Malfunction of the on/off switch or improper connection of the circuit can be the cause of this problem. Contact a licensed technician for a repair or replacement.
How to remove tape stain on my Range Hood?
Wipe in one direction with alcohol or auto-polish cleans.
