Range Hood
Typhoon Series
  • Typhoon high-speed motor - up to 1650 R.P.M.
  • Exhaust volume up to 1020 m³/hr
  • Dual exhaust wheels
  • Stainless steel or white teflon body
  • 3-year warranty for internal motor

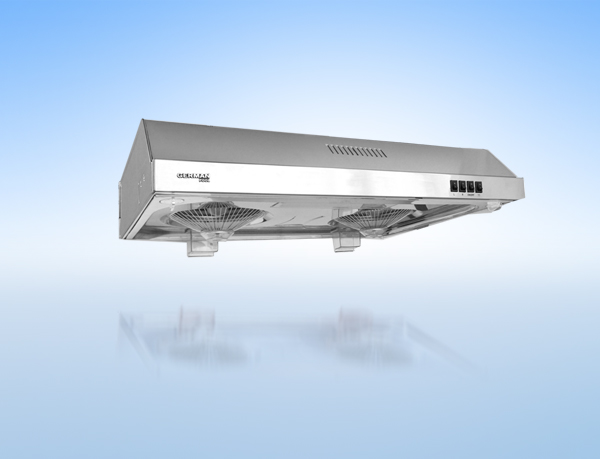

TYP-717

Download Product Brochure PDF
Frequently Asked Questions
User's Manual
German Pool Retail Outlet Locator
Related Projects

  • Descriptions
TYP-717 Installation
  • Typhoon ultra-speed motor - up to 1650 R.P.M.
  • Exhaust volume up to 1020 m³/hr
  • Dual exhaust wheels with independent single-speed power control
  • Chromic stainless steel range hood body
  • Supplied with four independent collection cups for easy cleaning
  • 3-year warranty for internal motor

    • Warranty on Motor
    • Typhoon Series comes with dual exhaust wheels with separate power switch for extra flexibility. The ultra-speed Typhoon motor has a 3-year warranty.
  • Specifications
Model # TYP-717
Voltage 220 V / 50 Hz
Power 160 W
Electric Current 1.0 A
Exhaust Flow 1020 m³/hr
Motor Speed 1650 R.P.M.
Exhaust Outlet 152 mm / 6"
Power: Lighting 40 W
Colour Stainless Steel
Dimensions (H) 140 (W) 711 (D) 523 mm
Packing Dimensions (H) 580 (W) 765 (D) 200 mm
Net Weight 11.1 kg
Gross Weight With Packing 12.6 kg
Certification / Standard IEC
Reference Number IEC 60335-2-31:2002+A1:2006+A2:2008
Warranty Term 1 Year (Motor - 3 Years)
Specifications are subject to change without prior notice. Please refer to the Instruction Manual for Warranty Information.
