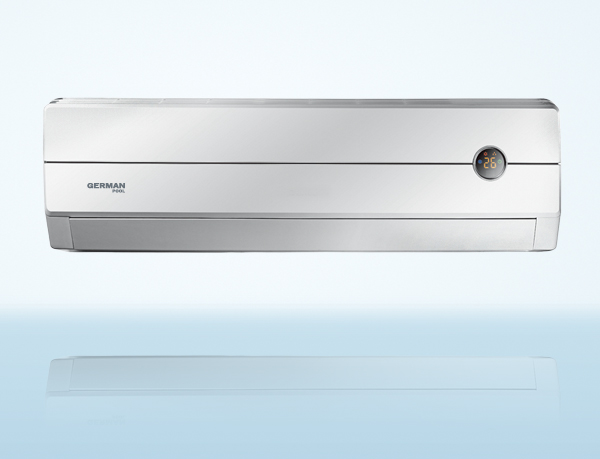

Air Conditioner
W
  • Cooling Capacity: 8.0 kW*
    (Approx. 3.54 HP / 27,200 BTU/hr)
  • 2 in 1 cooling and heating
  • Up to 50 m² cooling coverage
  • Eco-friendly R410A refrigerant
  • ISO 5151 standard compliance
SH-28

Download Product Brochure PDF
Frequently Asked Questions
Press Archive
User's Manual
German Pool Retail Outlet Locator

  • Descriptions
  • Cooling Capacity: 8.0 kW* (Approx. 3.54 HP / 27,200 BTU/hr)
  • Heating Capacity: 8.8 kW*
  • 2 in 1 cooling and heating, ideal for all seasons
  • Eco-friendly R410A refrigerant
  • Dehumidification, sleep and timer functions
  • Turbo mode for quick cooling effect
  • Wide-angle auto-swing airflow
  • Stylish LCD design with clear temperature display
  • Full-function wireless remote control
  • 3-year full warranty*** (5-year on compressor)
11,510


  • Specifications
Model # SH-28
Voltage 220-240 V / 50 Hz
Power (Cooling/Heating) 2.46 / 2.59 kW
Electric Current (Cooling/Heating) 11.7 / 13.1 A
Cooling Capacity in kW* 8.0 kW
Heating Capacity in kW* 8.8 kW
Dehumidifying Capacity 2.7 L/h
Cooling Coverage Area* 32-50 m²
Airflow Volume 1200 m³/h
Interior / Exterior Unit
Interior Unit Exterior Unit
Split Unit Model Number
SC-28 SC-28-EXT
Dimensions
(H) 328 mm
(W) 1,154 mm
(D) 253 mm		 (H) 790 mm
(W) 980 mm
(D) 427 mm
Net Weight
17.5 kg 68 kg
Energy Efficiency Class N/A
Warranty Term** 3 Years*** (Compressor 5 Years)
* kW is taken as the standard unit of cooling and heating capacities.
** Actual cooling coverage area size is subject to room and weather conditions.
*** The warranty covers all parts (except plastic parts) for three years, plus first year’s service fee for testing, labour transportation and installation (excluding any scaffolding costs).
Note: For split type air conditioners, 200mm must be reserved at the top of the interior unit for air recirculation.
Specifications are subject to change without prior notice. Please refer to the Instruction Manual for Warranty Information.
