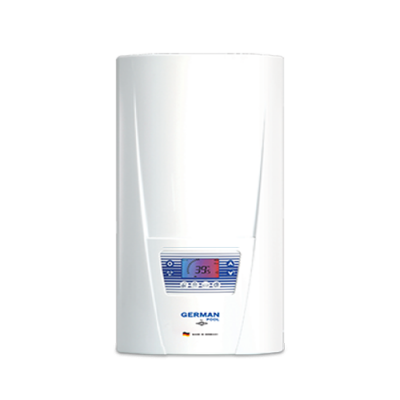

Water Heater (3-Phase Power Supply) - DSX-R

  • Made in Germany
  • Full Electronic Control
  • Multiple Power Ratings: 18/21/24/27 kW
  • Precise Temperature Adjustment (20-60°C)
  • 4 programmable keys
  • Compatible with solar heating systems
  • 3-phase power supply only
  • Full electronic-controlled with IES® bare wire heating system
  • Twin Temperature Control (TTC®) allows accurate and precise temperature up to the rated capacity
  • Multiple Power System MPS®: can be set to 18 kW, 21 kW, 24 kW or 27 kW during installation
  • Electronic safety system with temperature and pressure cut-off devices
  • Attractive and slim design with durable body
  • Single-point or multi-point use, e.g. bath, shower, sink or wash basin
  • Easy installation with variable connection possibilities
  • Large temperature-dependent colour display for precise temperature adjustment between 20°C and 60°C
  • Four programmable buttons for individual temperature preferences (Default settings: wash basin-35°C, shower-38°C, bath tub-42°C, kitchen sink-48°C
  • Optional cable remote control module available
1 of 2
www.germanpool.com/eng/products/wh_instant.php?mdl=dsx-r

Specifications

  • Information
  • Model / Sub-Model
    DSX
  • Power Setting
    18 kW | 21 kW | 24 kW | 27 kW
  • Voltage
    380-415 V (18 kW) | 380-415 V (21 kW) | 380-415 V (24 kW) | 380-400 V (27 kW)
  • Electric Power
  • Power (Max)
  • Power Supply
    3 Phase
  • Hot Water Flow Rate Per Minute*
    9.2 L (18 kW) | 10.7 L (21 kW) | 12.3 L (24 kW) | 13.8 L (27 kW)
  • Flow Rate
    2.5-8 L/min
  • Required Cable Size
    4 mm² (18 kW) | 4 mm² (21 kW) | 6 mm² (24 kW) | 6 mm² (27 kW)
  • Colour
    White
  • Dimensions
    (H) 466 (W) 231 (D) 97 mm
  • Packing Dimensions
    (H) 533 (W) 290 (D) 164 mm
  • Net Weight
    3.8 kg
  • Net Weight: Filled with Water
    4.2 kg
  • Functions
  • Temperature Adjustment
    20-60 °C
  • Testing Pressure
    10 Bar
  • VDE Approval / Class
    IP 25 / Class 1
  • Country of Origin
    Germany
  • Others
  • Certification / Standard
    N/A
  • Other Certification
    IEC60335-1 (ed.4) IEC60335-2-35 (ed.4)
  • Warranty Term
    3 Years **
  • * Temperature increase @ Δt=28K e.g. from 12 to 40°C.
  • Under normal working conditions, incoming pressure should not exceed 0.6 MPa. Otherwise, a separate pressure control device is necessary. When incoming water pressure exceeds 0.6 MPa, German Pool will not provide any repair service until a pressure contro
  • Specifications are subject to change without prior notice. Please refer to the Instruction Manual for Warranty Information.
